By: Stoelting
Model Number: SKU:CS-AXOM-F231-109I2-WF
UPC: 671080521879Stoelting - 22" x 28.5" x 34.75" 208-240 V Water Cooled Gravity-Fed Countertop Soft Serve And Shake Freezer - F231-109I2-WF (Pre-Order Now, ETA 8-12 Weeks)

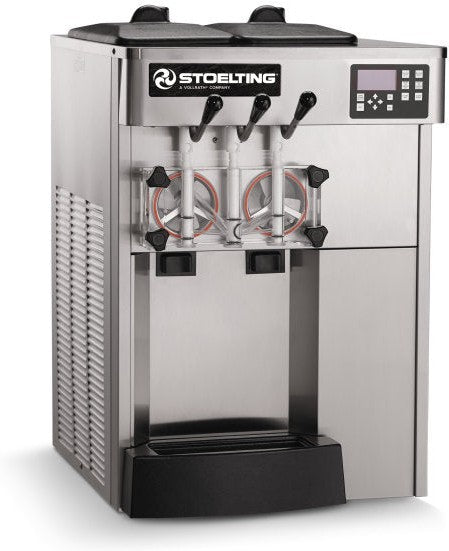

Stoelting - 22" x 28.5" x 34.75" 208-240 V Water Cooled Gravity-Fed Countertop Soft Serve And Shake Freezer - F231-109I2-WF (Pre-Order Now, ETA 8-12 Weeks)
Share
Regular price
$22,892.85 USD
Regular price
$35,710.40 USD
Sale price
$22,892.85 USD
Unit price
/
per
Shake up your frozen treat offerings with the is a durable, heavy-duty solution for transporting packages, supplies, and equipment. Key highlights: Allows the operators to dispense outstanding soft serve from the left side, and thick, creamy shakes from the right side, with the convenience and cost of one unit HIgh-production...
Shake up your frozen treat offerings with the is a durable, heavy-duty solution for transporting packages, supplies, and equipment.
Key highlights:
- Allows the operators to dispense outstanding soft serve from the left side, and thick, creamy shakes from the right side, with the convenience and cost of one unit
- HIgh-production capacity with 12,000-BTU/hr compress and two ¾-hp drive motors
- 208- to 240-volt, air-cooled
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Energy Conservation Mode (ECM) protects product from over agitation during slow or nondraw periods
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Proprietary auger design gently folds mix and prevents product breakdown, producing a smoother, creamier product
- Low-environmental-impact, nontoxic refrigerant delivers excellent thermodynamic performance with zero Ozone Depletion Potential (ODP) and very low Global Warming Potential (GWP)
Model Number: F231-109I2-WF
SPECIFICATIONS
SPECIFICATIONS
| Weight | 385 Ib |
| Frequency (Hz) | 50 |
| Phase | 1 |
| Plug | Plug not included |
| Plug Connection | Yes |
| Running Amps | 16 |
| Voltage | 208-240 |
| Ouput Capacity per Hour Running Both Sides Gal | 11.5 |
| Ouput Capacity per Hour Running One Side Gal | 8.5 |
| Cooling | Water |
| Compressor (Btu/hr) | 12000 |
| Number of Drive Motors | 2 |
| Drive Motor (Hp) | 3/4 |
| Number of Hoppers | 2 |
| Number of Freezing Cylinders | 2 |
| Plumbing Fittings\t | Units require 3/8 inch N.P.T. water and drain fittings. Maximum water pressure of 130 psi. Minimum water flow rate of 3 GPM. Ideal EWT of 50°-70°F. |
| Hopper Capacity Gal | 3 |
| Hopper Capacity | 11.36 Lt. |
| Total Hopper Capacity Gal | 6 |
| Total Hopper Capacity | 22.71 Lt. |
| Freezing Cylinder Capacity Gal | 0.85 |
| Freezing Cylinder Capacity | 3.22 Lt. |
| Height | 34.75 inch |
| Width | 22 inch |
| Depth | 28.5 inch |
